Установка ProtoOBP агента в Kubernetes

Установка агента observability в Kubernetes.
Tags:

Описание

ProtoOBP агент автоматически собирает метрики, трейсы и логи и отправляет полученные данные на ProtoOBP Backend сервер.

Сбор трейсов приложения осуществляется с помощью трейсеров, автоматически инструментируя код следующих языков программирования:

Сбор метрик осуществляется автоматически для всех поддерживамых технологий.

Если вы используете OpenTelemetry:

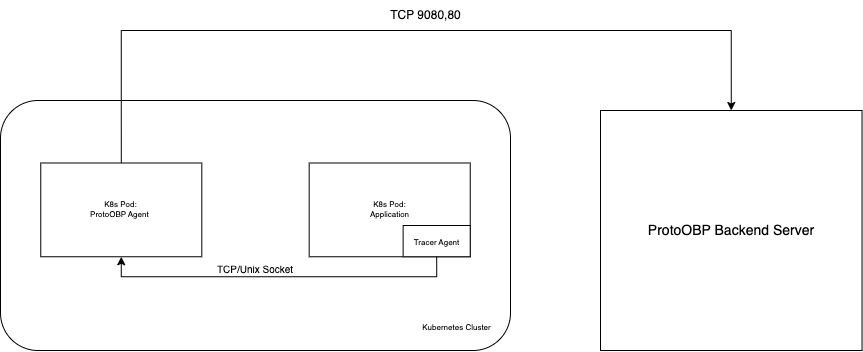

Схема взаимодействия компонентов ProtoOBP

../images/k8s_agent_commutication.png

Установка агента в Kubernetes

Собираемые метрики

Метрика Доступные метки / лейблы
kubernetes_apiserver_certificate_expiration_count host, upper_bound
kubernetes_apiserver_certificate_expiration_sum host
kubernetes_containers_last_state_terminated env, host, image_id, image_name, image_tag, kube_app_instance, kube_app_name, kube_container_name, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, pod_name, pod_phase, reason, service, short_image
kubernetes_containers_restarts env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, short_image
kubernetes_containers_running env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_phase, service, short_image
kubernetes_containers_state_terminated env, host, image_id, image_name, image_tag, kube_container_name, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_qos, kube_replica_set, kube_service, pod_name, pod_phase, reason, service, short_image
kubernetes_containers_state_waiting env, host, image_id, image_name, image_tag, kube_container_name, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_qos, kube_replica_set, kube_service, pod_name, pod_phase, reason, service, short_image
kubernetes_cpu_cfs_periods container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_cpu_cfs_throttled_periods container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_cpu_cfs_throttled_seconds container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_cpu_limits container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_cpu_load_10s_avg container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_cpu_requests container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_instance, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_cpu_system_total container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_cpu_usage_total container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_cpu_user_total container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_ephemeral_storage_usage host, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service
kubernetes_go_goroutines host
kubernetes_go_threads host
kubernetes_io_read_bytes container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_io_write_bytes container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_kubelet_check env, host
kubernetes_kubelet_check_log env, host
kubernetes_kubelet_check_ping env, host
kubernetes_kubelet_check_syncloop env, host
kubernetes_kubelet_container_log_filesystem_used_bytes container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_kubelet_cpu_usage host
kubernetes_kubelet_memory_rss host
kubernetes_kubelet_pleg_discard_events host
kubernetes_kubelet_pleg_last_seen host
kubernetes_kubelet_pleg_relist_duration_count host, upper_bound
kubernetes_kubelet_pleg_relist_duration_sum host
kubernetes_kubelet_pleg_relist_interval_count host, upper_bound
kubernetes_kubelet_pleg_relist_interval_sum host
kubernetes_kubelet_pod_start_duration_count host, upper_bound
kubernetes_kubelet_pod_start_duration_sum host
kubernetes_kubelet_pod_worker_duration_count host, operation_type, upper_bound
kubernetes_kubelet_pod_worker_duration_sum host, operation_type
kubernetes_kubelet_pod_worker_start_duration_count host, upper_bound
kubernetes_kubelet_pod_worker_start_duration_sum host
kubernetes_kubelet_runtime_errors host, operation_type
kubernetes_kubelet_runtime_operations host, operation_type
kubernetes_kubelet_runtime_operations_duration_count host, operation_type, upper_bound
kubernetes_kubelet_runtime_operations_duration_sum host, operation_type
kubernetes_kubelet_volume_stats_available_bytes host, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_qos, kube_service, kube_stateful_set, namespace, persistentvolumeclaim, pod_name
kubernetes_kubelet_volume_stats_capacity_bytes host, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_qos, kube_service, kube_stateful_set, namespace, persistentvolumeclaim, pod_name
kubernetes_kubelet_volume_stats_inodes host, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_qos, kube_service, kube_stateful_set, namespace, persistentvolumeclaim, pod_name
kubernetes_kubelet_volume_stats_inodes_free host, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_qos, kube_service, kube_stateful_set, namespace, persistentvolumeclaim, pod_name
kubernetes_kubelet_volume_stats_inodes_used host, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_qos, kube_service, kube_stateful_set, namespace, persistentvolumeclaim, pod_name
kubernetes_kubelet_volume_stats_used_bytes host, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_qos, kube_service, kube_stateful_set, namespace, persistentvolumeclaim, pod_name
kubernetes_liveness_probe_failure_total container_id, container_name, display_container_name, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, pod_name, pod_phase, service_id_container, short_image
kubernetes_liveness_probe_success_total container_id, container_name, display_container_name, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, pod_name, pod_phase, service_id_container, short_image
kubernetes_memory_cache container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_memory_limits container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_memory_requests container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_instance, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_memory_rss container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_memory_sw_limit container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_memory_swap container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_memory_usage container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_memory_usage_pct container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_memory_working_set container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_network_rx_bytes host, interface, kube_app_instance, kube_app_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service
kubernetes_network_rx_dropped host, interface, kube_app_instance, kube_app_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service
kubernetes_network_rx_errors host, interface, kube_app_instance, kube_app_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service
kubernetes_network_tx_bytes host, interface, kube_app_instance, kube_app_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service
kubernetes_network_tx_dropped host, interface, kube_app_instance, kube_app_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service
kubernetes_network_tx_errors host, interface, kube_app_instance, kube_app_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_name, pod_phase, service
kubernetes_pods_running host, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_priority_class, kube_qos, kube_replica_set, kube_service, kube_stateful_set, persistentvolumeclaim, pod_phase, service
kubernetes_prometheus_health endpoint, env, host
kubernetes_readiness_probe_failure_total container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_readiness_probe_success_total container_id, container_name, display_container_name, env, host, image_id, image_name, image_tag, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_ownerref_kind, kube_ownerref_name, kube_priority_class, kube_qos, kube_replica_set, kube_service, pod_name, pod_phase, service, service_id_container, short_image
kubernetes_rest_client_latency_count exported_host, host, upper_bound, verb
kubernetes_rest_client_latency_sum exported_host, host, verb
kubernetes_rest_client_requests code, exported_host, host, method
kubernetes_state_container_cpu_limit container_runtime_version, host, kernel_version, kube_cluster_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_priority_class, kube_replica_set, kube_stateful_set, kube_zone, kubelet_version, node, os_image, pod_name, pod_phase, resource, uid, unit
kubernetes_state_container_cpu_requested container_runtime_version, host, kernel_version, kube_app_instance, kube_app_name, kube_cluster_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_priority_class, kube_replica_set, kube_stateful_set, kube_zone, kubelet_version, node, os_image, pod_name, pod_phase, resource, uid, unit
kubernetes_state_container_memory_limit container_runtime_version, host, kernel_version, kube_cluster_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_priority_class, kube_replica_set, kube_stateful_set, kube_zone, kubelet_version, node, os_image, pod_name, pod_phase, resource, uid, unit
kubernetes_state_container_memory_requested container_runtime_version, host, kernel_version, kube_app_instance, kube_app_name, kube_cluster_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_priority_class, kube_replica_set, kube_stateful_set, kube_zone, kubelet_version, node, os_image, pod_name, pod_phase, resource, uid, unit
kubernetes_state_container_ready host, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_cluster_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_priority_class, kube_replica_set, kube_stateful_set, node, pod_name, pod_phase, uid
kubernetes_state_container_restarts host, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_cluster_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_priority_class, kube_replica_set, kube_stateful_set, node, pod_name, pod_phase, uid
kubernetes_state_container_running host, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_cluster_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_priority_class, kube_replica_set, kube_stateful_set, node, pod_name, pod_phase, uid
kubernetes_state_container_status_report_count_terminated host, kube_cluster_name, kube_container_name, kube_deployment, kube_namespace, kube_replica_set, node, pod_name, pod_phase, reason, uid
kubernetes_state_container_status_report_count_waiting host, kube_cluster_name, kube_container_name, kube_deployment, kube_namespace, kube_replica_set, kube_stateful_set, node, pod_name, pod_phase, reason, uid
kubernetes_state_container_terminated host, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_cluster_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_priority_class, kube_replica_set, kube_stateful_set, node, pod_name, pod_phase, uid
kubernetes_state_container_waiting host, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_cluster_name, kube_container_name, kube_daemon_set, kube_deployment, kube_namespace, kube_priority_class, kube_replica_set, kube_stateful_set, node, pod_name, pod_phase, uid
kubernetes_state_daemonset_count kube_cluster_name, kube_namespace
kubernetes_state_daemonset_daemons_available helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_daemon_set, kube_namespace
kubernetes_state_daemonset_daemons_unavailable helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_daemon_set, kube_namespace
kubernetes_state_daemonset_desired helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_daemon_set, kube_namespace
kubernetes_state_daemonset_misscheduled helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_daemon_set, kube_namespace
kubernetes_state_daemonset_ready helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_daemon_set, kube_namespace
kubernetes_state_daemonset_scheduled helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_daemon_set, kube_namespace
kubernetes_state_daemonset_updated helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_daemon_set, kube_namespace
kubernetes_state_deployment_condition condition, helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_deployment, kube_namespace, status
kubernetes_state_deployment_count kube_cluster_name, kube_namespace
kubernetes_state_deployment_paused helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_deployment, kube_namespace
kubernetes_state_deployment_replicas helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_deployment, kube_namespace
kubernetes_state_deployment_replicas_available helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_deployment, kube_namespace
kubernetes_state_deployment_replicas_desired helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_deployment, kube_namespace
kubernetes_state_deployment_replicas_unavailable helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_deployment, kube_namespace
kubernetes_state_deployment_replicas_updated helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_deployment, kube_namespace
kubernetes_state_deployment_rollingupdate_max_surge helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_deployment, kube_namespace
kubernetes_state_deployment_rollingupdate_max_unavailable helm_chart, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_app_version, kube_cluster_name, kube_deployment, kube_namespace
kubernetes_state_endpoint_address_available kube_cluster_name, kube_endpoint, kube_namespace
kubernetes_state_endpoint_address_not_ready kube_cluster_name, kube_endpoint, kube_namespace
kubernetes_state_endpoint_count kube_cluster_name, kube_namespace
kubernetes_state_namespace_count kube_cluster_name, phase
kubernetes_state_node_age container_runtime_version, host, kernel_version, kube_cluster_name, kube_zone, kubelet_version, node, os_image
kubernetes_state_node_by_condition condition, container_runtime_version, host, kernel_version, kube_cluster_name, kube_zone, kubelet_version, node, os_image, status
kubernetes_state_node_count container_runtime_version, kernel_version, kube_cluster_name, kubelet_version, os_image
kubernetes_state_node_cpu_allocatable container_runtime_version, host, kernel_version, kube_cluster_name, kube_zone, kubelet_version, node, os_image, resource, unit
kubernetes_state_node_cpu_capacity container_runtime_version, host, kernel_version, kube_cluster_name, kube_zone, kubelet_version, node, os_image, resource, unit
kubernetes_state_node_disk_pressure condition, container_runtime_version, env, host, kernel_version, kube_cluster_name, kube_zone, kubelet_version, message, node, os_image, status
kubernetes_state_node_ephemeral_storage_allocatable container_runtime_version, host, kernel_version, kube_cluster_name, kube_zone, kubelet_version, node, os_image, resource, unit
kubernetes_state_node_ephemeral_storage_capacity container_runtime_version, host, kernel_version, kube_cluster_name, kube_zone, kubelet_version, node, os_image, resource, unit
kubernetes_state_node_memory_allocatable container_runtime_version, host, kernel_version, kube_cluster_name, kube_zone, kubelet_version, node, os_image, resource, unit
kubernetes_state_node_memory_capacity container_runtime_version, host, kernel_version, kube_cluster_name, kube_zone, kubelet_version, node, os_image, resource, unit
kubernetes_state_node_memory_pressure condition, container_runtime_version, env, host, kernel_version, kube_cluster_name, kube_zone, kubelet_version, message, node, os_image, status
kubernetes_state_node_network_unavailable condition, container_runtime_version, env, host, kernel_version, kube_cluster_name, kube_zone, kubelet_version, message, node, os_image, status
kubernetes_state_node_pods_allocatable container_runtime_version, host, kernel_version, kube_cluster_name, kube_zone, kubelet_version, node, os_image, resource, unit
kubernetes_state_node_pods_capacity container_runtime_version, host, kernel_version, kube_cluster_name, kube_zone, kubelet_version, node, os_image, resource, unit
kubernetes_state_node_ready condition, container_runtime_version, env, host, kernel_version, kube_cluster_name, kube_zone, kubelet_version, message, node, os_image, status
kubernetes_state_node_status container_runtime_version, host, kernel_version, kube_cluster_name, kube_zone, kubelet_version, node, os_image, status
kubernetes_state_pdb_disruptions_allowed kube_cluster_name, kube_namespace, poddisruptionbudget
kubernetes_state_pdb_pods_desired kube_cluster_name, kube_namespace, poddisruptionbudget
kubernetes_state_pdb_pods_healthy kube_cluster_name, kube_namespace, poddisruptionbudget
kubernetes_state_pdb_pods_total kube_cluster_name, kube_namespace, poddisruptionbudget
kubernetes_state_persistentvolume_by_phase kube_cluster_name, persistentvolume, phase, storageclass
kubernetes_state_persistentvolume_capacity kube_cluster_name, persistentvolume, storageclass
kubernetes_state_persistentvolumeclaim_access_mode access_mode, kube_cluster_name, kube_namespace, persistentvolumeclaim, storageclass
kubernetes_state_persistentvolumeclaim_request_storage kube_cluster_name, kube_namespace, persistentvolumeclaim, storageclass
kubernetes_state_persistentvolumeclaim_status kube_cluster_name, kube_namespace, persistentvolumeclaim, phase, storageclass
kubernetes_state_persistentvolumes_by_phase kube_cluster_name, phase
kubernetes_state_pod_age host, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_cluster_name, kube_daemon_set, kube_deployment, kube_namespace, kube_priority_class, kube_replica_set, kube_stateful_set, node, pod_name, pod_phase, uid
kubernetes_state_pod_count container_runtime_version, host, kernel_version, kube_cluster_name, kube_daemon_set, kube_deployment, kube_namespace, kube_replica_set, kube_stateful_set, kube_zone, kubelet_version, node, os_image
kubernetes_state_pod_ready condition, host, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_cluster_name, kube_daemon_set, kube_deployment, kube_namespace, kube_priority_class, kube_replica_set, kube_stateful_set, node, pod_name, pod_phase, uid
kubernetes_state_pod_scheduled condition, host, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_cluster_name, kube_daemon_set, kube_deployment, kube_namespace, kube_priority_class, kube_replica_set, kube_stateful_set, node, pod_name, pod_phase, uid
kubernetes_state_pod_status_phase host, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_cluster_name, kube_daemon_set, kube_deployment, kube_namespace, kube_priority_class, kube_replica_set, kube_stateful_set, node, pod_name, pod_phase, uid
kubernetes_state_pod_uptime host, kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_cluster_name, kube_daemon_set, kube_deployment, kube_namespace, kube_priority_class, kube_replica_set, kube_stateful_set, node, pod_name, pod_phase, uid
kubernetes_state_pod_volumes_persistentvolumeclaims_readonly host, kube_cluster_name, kube_namespace, kube_stateful_set, node, persistentvolumeclaim, pod_name, pod_phase, storageclass, uid, volume
kubernetes_state_replicaset_count kube_cluster_name, kube_deployment, kube_namespace
kubernetes_state_replicaset_fully_labeled_replicas kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_cluster_name, kube_namespace, kube_replica_set
kubernetes_state_replicaset_replicas kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_cluster_name, kube_namespace, kube_replica_set
kubernetes_state_replicaset_replicas_desired kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_cluster_name, kube_namespace, kube_replica_set
kubernetes_state_replicaset_replicas_ready kube_app_component, kube_app_instance, kube_app_managed_by, kube_app_name, kube_cluster_name, kube_namespace, kube_replica_set
kubernetes_state_secret_type kube_cluster_name, kube_namespace, secret, type
kubernetes_state_service_count kube_cluster_name, kube_namespace, type
kubernetes_state_service_type kube_cluster_name, kube_namespace, kube_service, type, uid
kubernetes_state_statefulset_count kube_cluster_name, kube_namespace
kubernetes_state_statefulset_replicas kube_app_managed_by, kube_cluster_name, kube_namespace, kube_stateful_set
kubernetes_state_statefulset_replicas_current kube_app_managed_by, kube_cluster_name, kube_namespace, kube_stateful_set
kubernetes_state_statefulset_replicas_desired kube_app_managed_by, kube_cluster_name, kube_namespace, kube_stateful_set
kubernetes_state_statefulset_replicas_ready kube_app_managed_by, kube_cluster_name, kube_namespace, kube_stateful_set
kubernetes_state_statefulset_replicas_updated kube_app_managed_by, kube_cluster_name, kube_namespace, kube_stateful_set
